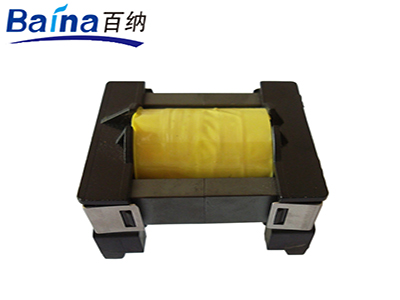

product name:ETD44

Product introduction:

support hotline: 13928159753
Detailed introduction

I. EDD 44 high frequency Transformer size exterior map(in mm)


Trade name

Type

Skeleton Style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

ETD44-01

vertical

47.0

34.5

52.0

9

5.0

9

5.0

27.5

Φ1.0

ETD44-02

horizontal type

50.0

52.5

40.5

9

5.0

9

5.0

36.5

Φ1.0

The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can be customized according to customer requirements ETD 44 high frequency Transformers.
II.EDD 44 High frequency Transformer performance
1. Operating frequency: 50kHz-500KHz
2. Output power: 20 to 800 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
III. Characteristics of HF Transformers
The EDD 44 high-frequency Transformer has the characteristics of convenient winding, moderate price and high reliability. ETD-type Transformer is a basic ferrite core with low loss, large output power, wide operating frequency, low temperature rise, and stable performance. They are widely used in switching power supplies and a variety of electronic lines. The oscillation methods include full bridges, half-bridges, single-ended, resonant, Push-Pull lines, etc.. They have excellent material properties and cylindrical center columns of ETD magnetic cores. It is easier to winding and increases the cross-sectional area of the winding, which can increase the output power and is suitable for various switching power supplies and inverters, UPS, etc..
IV. Application of ETD 44 High Frequency Transformer
EDD 44 high-frequency Transformers are commonly used in PC power Transformers, LLC power Transformers, communication power Transformers, and industrial converters.
V. EDD 44 High Frequency Transformer Price
The price range of the EDD 44 high-frequency Transformer is generally between 8.5 and 15.5 yuan(RMB). The price mainly depends on the process complexity of the product, the customer's requirements for raw materials, and whether it requires safety certification.
