Your current location is:Home>>Product Center

product name:EE22

Product introduction:

support hotline: 13928159753
Detailed introduction

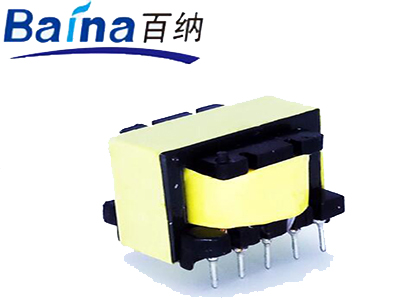

I. EE22 high frequency Transformer size exterior map(in mm)


Trade name

Type

Skeleton Style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

EE22-1

vertical

24.0

19.0

20.5

5

4.0

5

4.0

10.0

Φ0.6

EE22-2

horizontal type

24.0

25.5

18.5

8

2.5

8

2.5

15.0

Φ0.6

The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can be customized according to customer requirements EE22 high frequency Transformers of various specifications.
II. EE22 high frequency Transformer performance
1. Operating frequency: 20 kHz-300 KHz
2. Output power: 5 to 18 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
3. Characteristics of EE22 high frequency Transformers
The EE22 high-frequency Transformer has the characteristics of small size, cheap price and high reliability. The EE Transformer is a basic ferrite core with stable performance, low cost and large current. It is widely used in power conversion and circuit filtering. Volume from small to large, to meet the needs of various application circuits. For example, using a temperature-resistant 155 °C or 180 °C polyazepam paint envelope, it can meet different temperature conditions and is suitable for various switching power supplies and inverters, UPS, etc..
IV. Application of EE22 high frequency Transformer
EE22 high-frequency Transformers are often used in self-oscillating electronic Transformers, DC-DC converters, drive Transformers, auxiliary Transformers, and the like.
V. EE22 High Frequency Transformer Price
The price range of the EE22 high-frequency Transformer is generally between 1.8 and 3.0 yuan(RMB). The price mainly depends on the complexity of the product, the customer's requirements for raw materials, and whether or not it requires safety certification.
