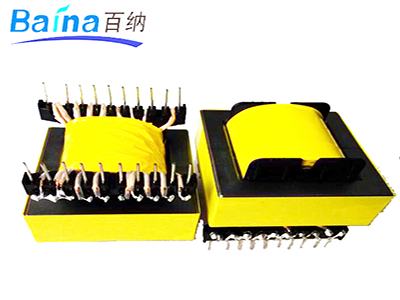

I. EE 40 high frequency Transformer size exterior map(in mm)


Trade name

Type

Skeleton Style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

EE40-1

vertical

42.0

29.0

38.5

8

5.0

8

5.0

22.5

Φ0.8

EE40-2

vertical

42.0

29.0

38.5

6

5.0

6

5.0

22.5

Φ0.8

EE40-3

horizontal type

41.5

36.0

27.5

7

5.0

7

5.0

25.8

Φ0.8

EE40-4

horizontal type

41.5

36.0

32.5

6

5.0

6

5.0

27.0

Φ0.8

The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can customize various specifications EE 40 high frequency Transformers according to customer requirements.
II. EE 40 High Frequency Transformer Performance
1. Operating frequency: 20 kHz-500 KHz
2. Output power: 50 to 800 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
III. Features of the EE 40 high frequency Transformer
The EE 40 high frequency Transformer has the characteristics of convenient winding, moderate price and high reliability. The EE Transformer is a basic ferrite core with stable performance, low cost and large current. It is widely used in power conversion and circuit filtering. Volume from small to large, to meet the needs of various application circuits. For example, using a temperature-resistant 155 °C or 180 °C polyazepam paint envelope, it can meet different temperature conditions and is suitable for various switching power supplies and inverters, UPS, etc..
IV. Application of EE 40 High Frequency Transformer
The EE 40 high-frequency Transformer is commonly used in inverter power Transformers, DC-DC converters, switching power main power Transformers, vehicle inverter power Transformers, resonance inductors, and the like.
V. EE 40 High Frequency Transformer Price
The price range of the EE 40 high-frequency Transformer is generally between 3.8 and 6.5 yuan(RMB). The price mainly depends on the complexity of the product, the customer's requirements for raw materials, and whether it requires safety certification.
