product name:EE19

Product introduction:

support hotline: 13928159753
Detailed introduction

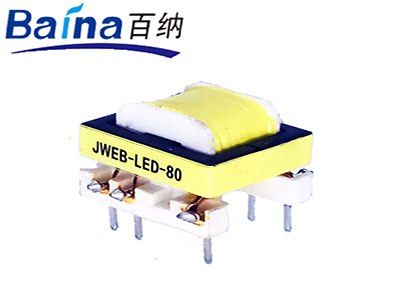

1. EE19 High Frequency Transformer Size Appearance Diagram (mm)




Product Name

Type distinction

Skeleton style

L

W

H

1 side PIN (PIN distance)

2 side PIN (PIN distance)

Row spacing

PIN path

EE19-1

vertical

20.0

16.5

23.0

4

3.5

6

2.7

12.0

Φ0.6

EE19-2

vertical

15.0

15.0

19.0

3

4.0

4

4.0

11.0

Φ0.6

EE19-3

horizontal

20.0

18.0

17.0

4

3.8/5.0

4

5.0

12.5

Φ0.6

EE19-4

horizontal

17.0

19.0

13.5

5

3.0

5

3.0

12.5

Φ0.6

EE19-5

vertical

23.0

17.0

24.0

4

4.0

4

4.0

10.0

Φ0.6


The above are the common skeleton styles of the company, other styles are not included in it for the time being. Welcome to consult. The company can customize EE19 high frequency transformers of various specifications according to customer requirements.


II. EE19 High Frequency Transformer Performance

 1. Working frequency: 20kHz-500KHz

 2. Output power: 0.5 to 18 W

 3. Working temperature: - 40 ~125 ~

 4. Storage temperature: - 25 ~85 ~

 5. Storage humidity: 30 to 95%



III. Characteristics of EE19 High Frequency Transformer

 EE19 high frequency transformer has the characteristics of small size, low price and high reliability. EE transformer is a basic ferrite core with stable performance, low cost and high current. Widely used in power conversion and line filtering. Volume from small to large, to meet the needs of various application circuits. For example, polyurethane enameled wires with temperature resistance of 155 ~180 ~C can meet different temperature conditions. They are suitable for various switching power supply, inverters, UPS, etc.



IV. Application of EE19 High Frequency Transformer



EE19 high frequency transformer is often used in auxiliary power transformer, DC-DC converter, drive transformer, digital camera, handheld switching power charger, etc.



V. EE19 High Frequency Transformer Price



The price range of EE19 high frequency transformer is generally between 1.5 and 2.3 yuan (RMB). The price mainly depends on the process complexity of the product, the requirements of customers for raw materials, and whether safety certification has been required.
