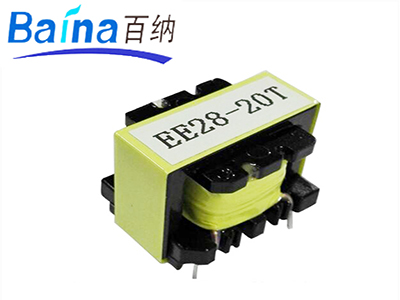

product name:EE28

Product introduction: EE28 high frequency transformer has the characteristics of small size, low price and high reliability. EE transformer is a basic ferrite core with stable performance, low cost and high current. Widely used in power conversion and line filtering.

support hotline: 13928159753
Detailed introduction

1. EE28 High Frequency Transformer Size Appearance Diagram (mm)




Product Name

Type distinction

Skeleton style

L

W

H

1 side PIN (PIN distance)

2 side PIN (PIN distance)

Row spacing

PIN path

EE28-01

vertical

30

24.0

24.0

5

5.0

5

5.0

17.5

Φ0.8

EE28-02

vertical

32.5

27.5

26.0

8

4.0

8

4.0

20.0

Φ0.8



The above are the common skeleton styles of the company, other styles are not included in it for the time being. Welcome to consult. The company can customize EE28 high frequency transformers of various specifications according to customer requirements.



II. EE28 High Frequency Transformer Performance

1. Working frequency: 20kHz-500KHz

2. Output power: 10 to 60W

3. Working temperature: - 40 ~125 ~

4. Storage temperature: - 25 ~85 ~

5. Storage humidity: 30 to 95%



Characteristics of EE28 High Frequency Transformer

EE28 high frequency transformer has the characteristics of small size, low price and high reliability. EE transformer is a basic ferrite core with stable performance, low cost and high current. Widely used in power conversion and line filtering. Volume from small to large, to meet the needs of various application circuits. For example, polyurethane enameled wires with temperature resistance of 155 ~180 ~C can meet different temperature conditions. They are suitable for various switching power supply, inverters, UPS, etc.



IV. Application of EE28 High Frequency Transformer

EE28 high frequency transformer is often used in DC-DC converter, converter drive transformer, PC power transformer and so on.



V. EE28 High Frequency Transformer Price

The price range of EE28 high frequency transformer is generally between 2.6 and 3.5 yuan (RMB). The price mainly depends on the process complexity of the product, the requirements of customers for raw materials, and whether safety certification has been required.
