product name:EP7

Product introduction:

support hotline: 13928159753
Detailed introduction

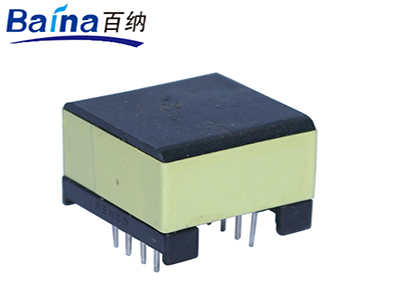

I. EP7 high frequency Transformer size exterior map(in mm)


Trade name

Type

Skeleton Style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

EP7-01

horizontal type

10.0

8.0

10.5

3

2.54

3

2.54

5.08

Φ0.5

EP7-02

horizontal type

II

10.5

10.5

10.0

3

2.5

3

2.5

12.7

Φ0.7

The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. Our company can customize the high frequency Transformer EP7 with various specifications according to customer requirements.
II. EP7 High-frequency Transformer performance
1. Operating frequency: 20 kHz-500 KHz
2. Output power: 0.5 to 3.5 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
3. Features of EP7 High-frequency Transformers
The EP7 high-frequency Transformer has the characteristics of small size, cheap price, and high reliability. The EP Transformer is a high-performance high-frequency Transformer. It not only has a small memory and a large power, but also because most of his wire packets are shielded by magnetic cores, his anti-interference ability and anti-radiation performance are very high. At the same time, due to this shield, Its leakage sensitivity and EMI parameters are also very good, and are suitable for electronic circuits such as switch power supplies with very high requirements.
IV. Application of EP7 High Frequency Transformer
EP7 high-frequency Transformers are commonly used in digital camera power Transformers, DC-DC converters, drive Transformers, digital cameras, current Transformers, switch power common mode inductors, and XDSL Transformers.
V. EP7 High Frequency Transformer Price
The price range of EP7 high-frequency Transformers is generally between 1.6 and 2.8 yuan(RMB). The price mainly depends on the complexity of the product, the customer's requirements for raw materials, and whether or not it requires safety certification.
