product name:ER35

Product introduction:

support hotline: 13928159753
Detailed introduction

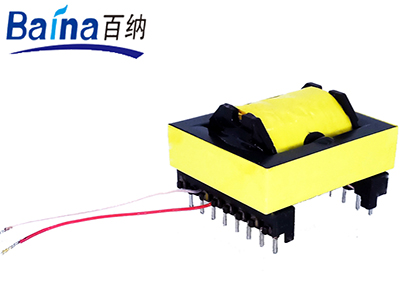

I. EC3542 High-frequency Transformer size exterior map(in mm)


Trade name

Type

style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

EC/ER35-1

horizontal type

37.0

45.0

30.0

7

5.0

7

5.0

37.0

Φ1.0

EC/ER35-2

horizontal type

40.0

43.5

30.0

8

5.0

8

5.0

35.0

Φ1.0

EC/ER35-3

horizontal type

36.0

36.0

27.0

7

5.1

4

5.1/20.4

30.4

Φ0.8

EC/ER35-4

horizontal type

41.0

39.0

27.0

8

5.0

8

5.0

30.0

Φ1.0

EC/ER35-5

vertical

37.0

29.5

45.0

6

5.0

6

5.0

22.5

Φ1.0

EC/ER35-6

vertical

37.0

29.5

45.0

7

5.0

7

5.0

22.5

Φ1.0

EC/ER35-7

vertical

41.0

31.0

45.0

8

5.0

8

5.0

22.5

Φ1.0

EC/ER35-8

vertical

51.0

29.0

46.0

8

5.0

10

5.0

22.3

Φ0.6

EC/ER35-9

vertical

41.0

29.0

33.0

15

2.5

15

2.5

22.5

Φ0.6

EC/ER35-10

vertical

58.0

26.0

43.0

22

2.5

22

2.5

22.4

Φ0.6

EC/ER35-11

vertical

39.0

29.0

42.0

14

2.5

14

2.5

22.3

Φ0.6

The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can customize various specifications EC35 high frequency Transformers according to customer requirements.
II. EC35 High frequency Transformer performance
1. Operating frequency: 50kHz-500KHz
2. Output power: 20 to 400 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
3. Features of the EC35 High Frequency Transformer
The EC35 high-frequency Transformer has the characteristics of convenient winding, moderate price and high reliability. The EC/ER Transformer is a basic type of ferrite core. They are widely used in switching power supplies and a variety of electronic lines. The oscillation methods include full bridges, half-bridges, single-terminal, resonant, Push-Pull lines, etc.. It has excellent material properties and is suitable for typical Transformer structures. The cylindrical center column of the EC/ER core makes it easier to winding and increases the cross-sectional area of the winding, which can increase the output power. Suitable for various switching power Transformers and dampening coils.
IV. Application of EC35 high frequency Transformer
EC35 high-frequency Transformers are often used in UPS power Transformers, LED power Transformers, communication power Transformers, and industrial converters.
V. EC35 High frequency Transformer price
The price range of the EC35 high-frequency Transformer is generally between 5.5 and 10.5 yuan(RMB). The price mainly depends on the complexity of the product and the customer's requirements for raw materials.
And whether to require safety certification.
