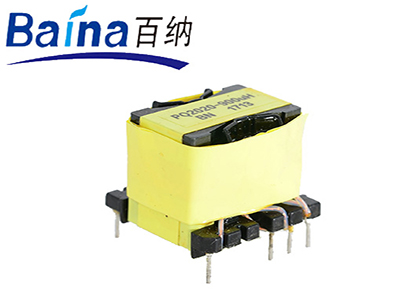

product name:PQ2620

Product introduction:

support hotline: 13928159753
Detailed introduction

I. PQ2620 High-frequency Transformer size exterior map(in mm)


Trade name

Type

Skeleton Style

L

W

H

1 side PIN(PIN distance)

2 side PIN(PIN distance)

Rounding

PIN Trail

PQ2620

vertical

28.0

31.0

22.0

6

3.8

6

3.8

25.4

Φ0.6



The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. Our company can customize the high frequency Transformer with various specifications PQ2620 according to customer requirements.
II. Performance of high frequency Transformer PQ2620
1. Operating frequency: 20 kHz-500 KHz
2. Output power: 10 to 1000 W
3. Operating temperature: -40 °C to +180 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
3. Features of High Frequency Transformer PQ2620
The high frequency PQ2620 Transformer has the characteristics of tight structure, high power, moderate price, and high reliability. The core of the high frequency Transformer of the PQ type is an ferrite core designed to meet the requirements of the new switch power supply. Its shape can meet the requirements for reducing copper and iron losses of the switch power transformer operating at high frequencies. It can also adapt to the requirements of the switching power supply in terms of temperature rise; Its circular center column makes winding easier, the capacity of the wire envelope increases, and the skeleton lead end makes the product installation very reliable, suitable for switching power supplies and damper coils.
IV. Application of high frequency Transformer PQ2620
The PQ2620 high-frequency Transformer is commonly used in Transformer, DC-DC converter, drive Transformer, notebook power supply, inverter power supply, UPS power supply, and communication power supply for electric vehicle chargers.
V. PQ2620 High frequency Transformer price
The price range of the high frequency PQ2620 Transformer is generally between 2.8 and 4.9 yuan(RMB). The price mainly depends on the complexity of the product, the customer's requirements for raw materials, and whether it requires safety certification.
