product name: EPC46

Product introduction: 53/5000

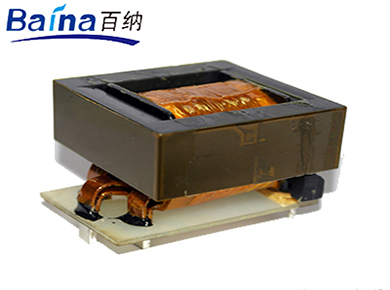

The EPC 46 high-frequency Transformer has the characteristics of small size, cheap price, and high reliability.

support hotline: 13928159753
Detailed introduction
I. EPC 46 high frequency Transformer size exterior map(in mm)
The above is the company's commonly used skeleton style, other styles are not included in the list, welcome to consult. The company can customize EPC-46 high frequency Transformers of various specifications according to customer requirements.
II. EPC 46 high frequency Transformer performance
1. Operating frequency: 20 kHz-500 KHz
2. Output power: 200 to 500 W
3. Operating temperature: -40 °C to +125 °C
4. Storage temperature: -25 °C to +85 °C
5. Storage humidity: 30 to 95 %
IV. Features of High Frequency Transformer EPC 46
The EPC 46 high-frequency Transformer has the characteristics of small size, cheap price, and high reliability. The EPC Transformer is a high-frequency Transformer designed to adapt to ultra-thin switching power supplies. It has a flat ferrite core. Its shape can meet the requirements of the high power of the power transformer and the requirements of the ultra-thin volume. It can also meet the requirements of the switching power supply in terms of temperature rise, but the requirements for the PCB board will be improved. It is better than the EPD Transformer online packet space, while EMI performance, leakage sensitivity, radiation and other parameters are better than the EFD Transformer, and other properties are close to the EE and EC Transformers.
II. Application of EPC 46 High Frequency Transformer
EPC46 high-frequency Transformers are commonly used in DC-DC converters, drive Transformers, auxiliary power Transformers, booster circuit Transformers, and mobile equipment Transformers.
3. EPC 46 High Frequency Transformer Price
The price range of the EPC 46 high-frequency Transformer is generally between 35-50 yuan(RMB). The price mainly depends on the complexity of the product and the customer's requirements for raw materials.
And whether to require safety certification, etc..
